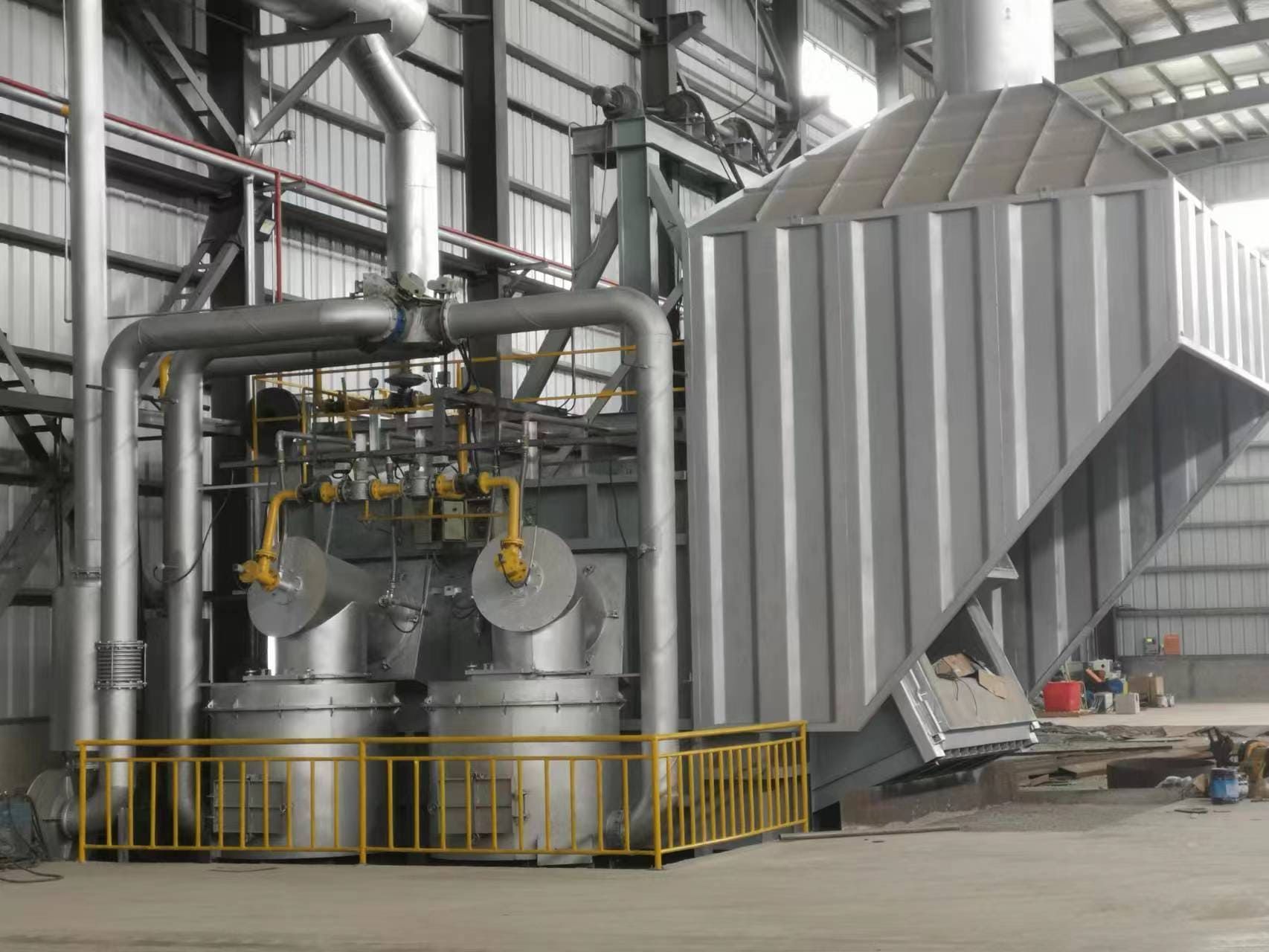

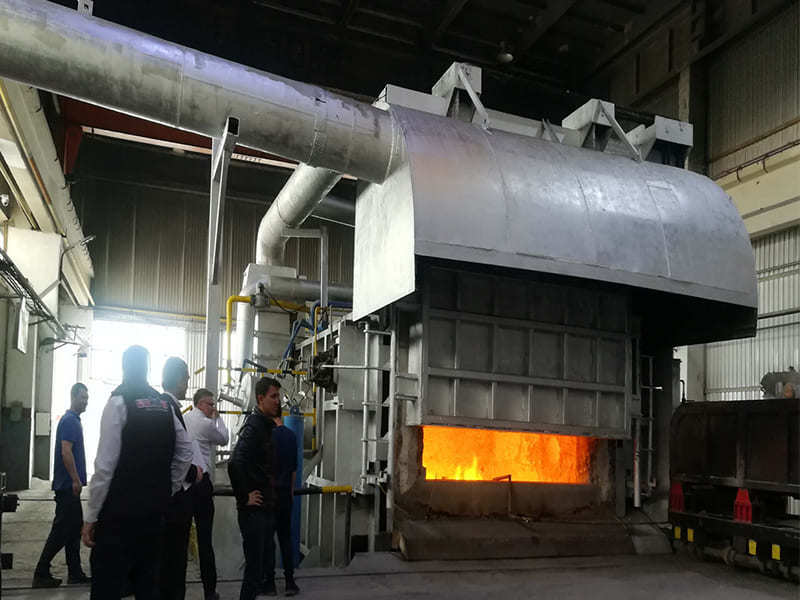

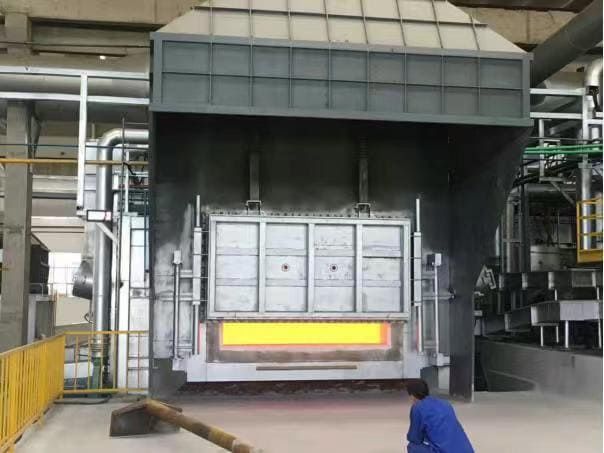

Regenerative Gas Aluminum Melting Furnace

Product Introduction

This regenerative aluminum melting furnace is a melting furnace that places scrap aluminum or aluminum alloy and other raw
materials into a melting pool, uses acombustion flame to melt them, remove impurities, and further adjust the alloy composition to
meet the required composition standards and temperature requirements ofthe process. The furnace types include tilting, fixed,
rectangular, and circularoptions. Available fuels include natural gas, liquefied gas, heavy oil, and diesel.

Product Features
Various models, loading capacity 2-100 tons, melting speed is 3-12 tons/hour.

The furace body is made of profile steel as the skeleton, and steel plates with a thickness of 8mm or more are used as the furnace surface. After welding, the sealing effect is good and the heat dissipation loss is minimal.

The sealing of the furnace door and mouth adopts a spring type compression structure and a soft edge sealing device, which can effectively prevent the leakage of heat inside the furnace

The PLC regenerative combustion automatic control system controls, and once safety abnormalities are found,analarm signal will be immediately activated.

This equipment operation is simple, and the entire combustion process is fully automatic control, including automatic ignition,automatic combustion, automatic commutation, automatic temperature control, system selfcheck flameout protection,safety protection, etc.

Related Products

Free Inquiry

info@gyrhl.com

Regenerative Gas Aluminum Melting Furnace

2-100t

Capacity

3-12T/1mins

Melting Time
